2025 Harley-Davidson® CVO™ Pan America® Features may include: DESIGNPremium Paint Carbon Blue paint has a subtle metallic effect with a gray camo background and bright silver Bar & Shield logo. Legendary Orange accents on the subframe and radiator guard are complemented by distinct orange CVO detailing from grips to seat to luggage. Luggage Designed in collaboration with SW-Motech| black aluminum hardcases provide 120 liters of combined storage| with premium CVO detailing and passenger backrest on the top case. Premium Accessories Outfitted for adventure| the CVO Pan America comes with a rugged 40-liter waterproof duffel| a Pan America-specific tool kit| and a sleek bike cover embossed with the CVO logo. Built for the journey| these essentials are as durable as they are functional. PERFORMANCERevolution® Max 1250 Engine The engine is a load-bearing chassis component| which reduces overall weight and improves rigidity| and its intoxicating power is available through a wide rev range and gives the rider an incredible amount of control. Suspension Electronically adjustable semi-active suspension damping in front| and automatic electronic preload adjustment with semi-active rebound and compression adjustment in the rear| giving you the best performance in changing terrain. Adaptive Ride Height Adaptive Ride Height automatically adjusts the seat height as you ride| lowering it at stops for easy footing and raising it at speed for optimal ground clearance and comfort. INNOVATION Nine different ride modes offer quickly adaptable performance personalities| each managed through the full-color touchscreen display. 6.8-Inch TFT Display Intuitive touchscreen infotainment system makes it easy to change music| swap ride modes| or tune Rider Safety Enhancements. Ride Modes With five pre-programmed ride modes and four rider-programmable modes| you can go from pavement to dirt with the push of a button. Rider Safety Enhancements are specially tuned for on- and off-road use.

Specifications

Dimensions

add remove
- Length:

  92.3 in
- Rake (steering head):

  25
- Trail:

  4.3 in
- Wheelbase:

  62.4 in
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  170/60R17 72V
- Fuel Capacity:

  5.6 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  626 lbs
- Weight, in running order:

  659 lb
- Luggage capacity – volume:

  4.24 cu ft (0.12 m³)
- Tire, type:

  Michelin® Scorcher “Adventure”, Radial
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  95.1 ft-lb
- Engine torque (RPM):

  6750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)
- Wheels, front type:

  Annodized aluminum tubeless laced
- Wheels, rear type:

  Annodized aluminum tubeless laced
- Brakes, type:

  Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Infotainment

add remove
- Screen size:

  6.8 in
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Languages:

  Arabic, Chinese, (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported

Request Details

Please waitseconds before submitting another form. cancel

First name Required

Last name Required

Phone Required

Email Required

Your inquiry

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

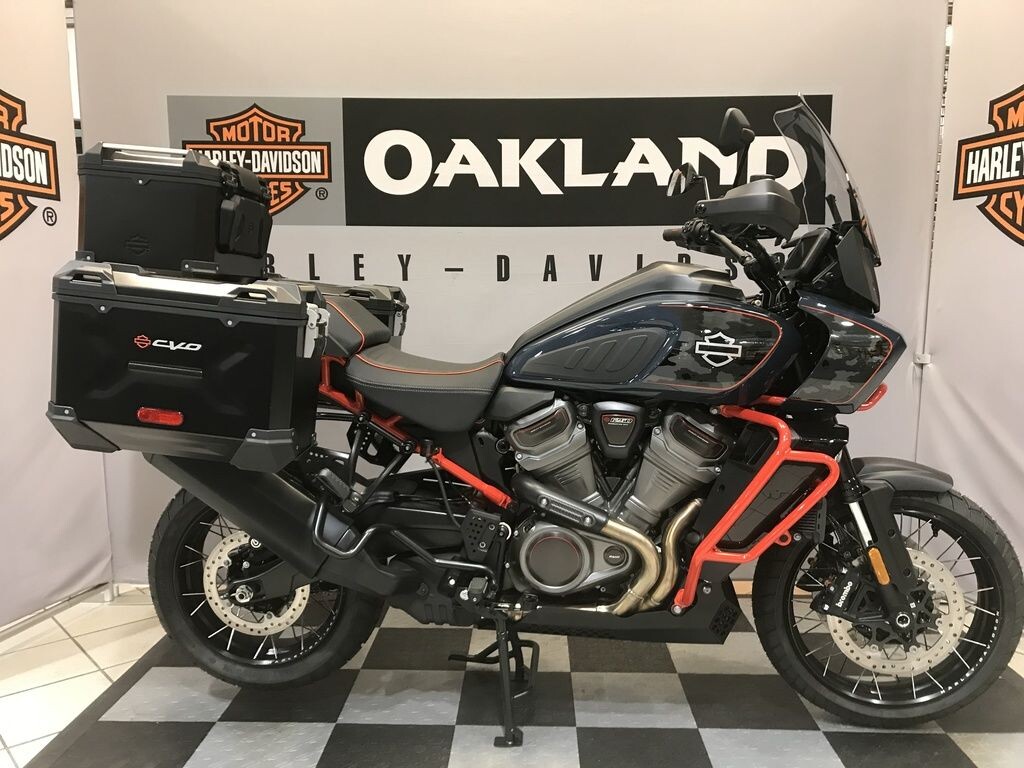

Harley-Davidson® CVO™ Pan America® 2025

: H8167

: MLY1ZGS28SS957868

: Harley-Davidson®

: Adventure Touring

: New

: 2025

: 8 mi

: Carbon Blue

Get Financing Book test ride

(510) 635-0100

Specifications

Request Details

Related models

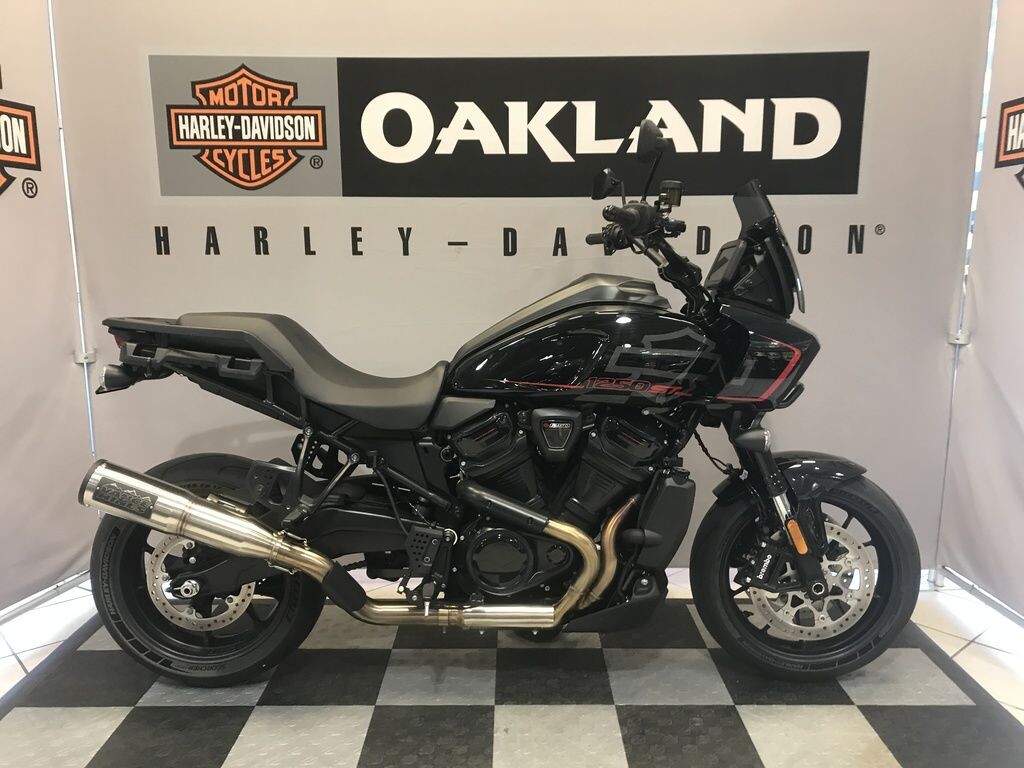

Harley-Davidson® Pan America® 1250 ST 2025

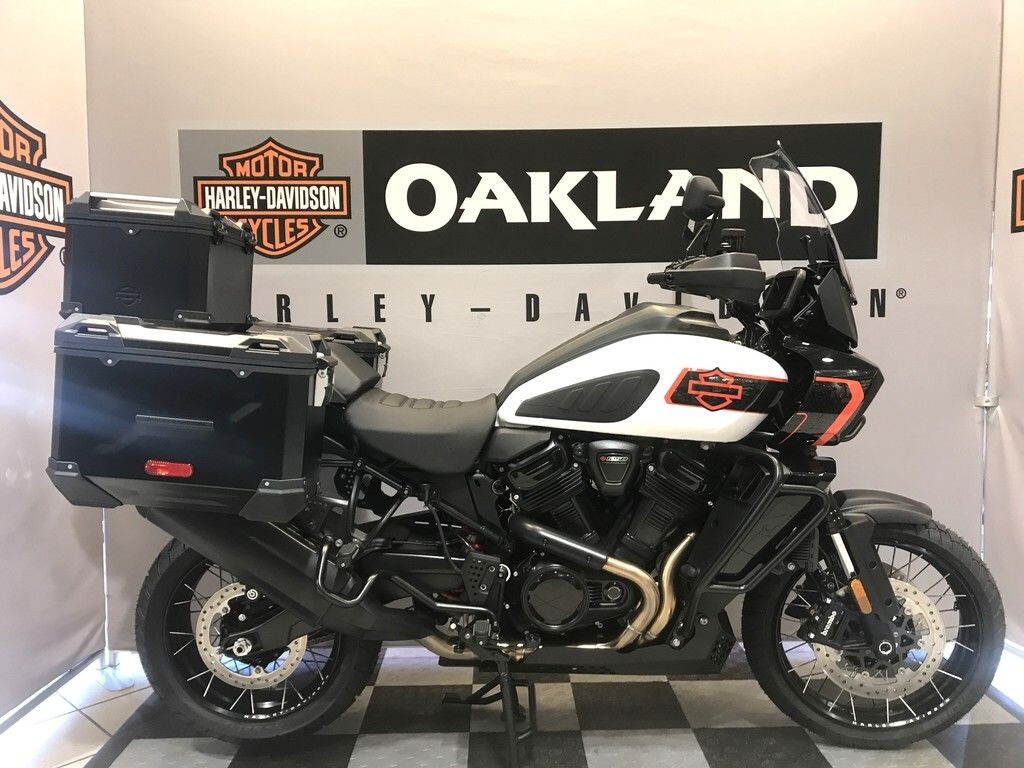

Harley-Davidson® Pan America 1250 Limited 2026
