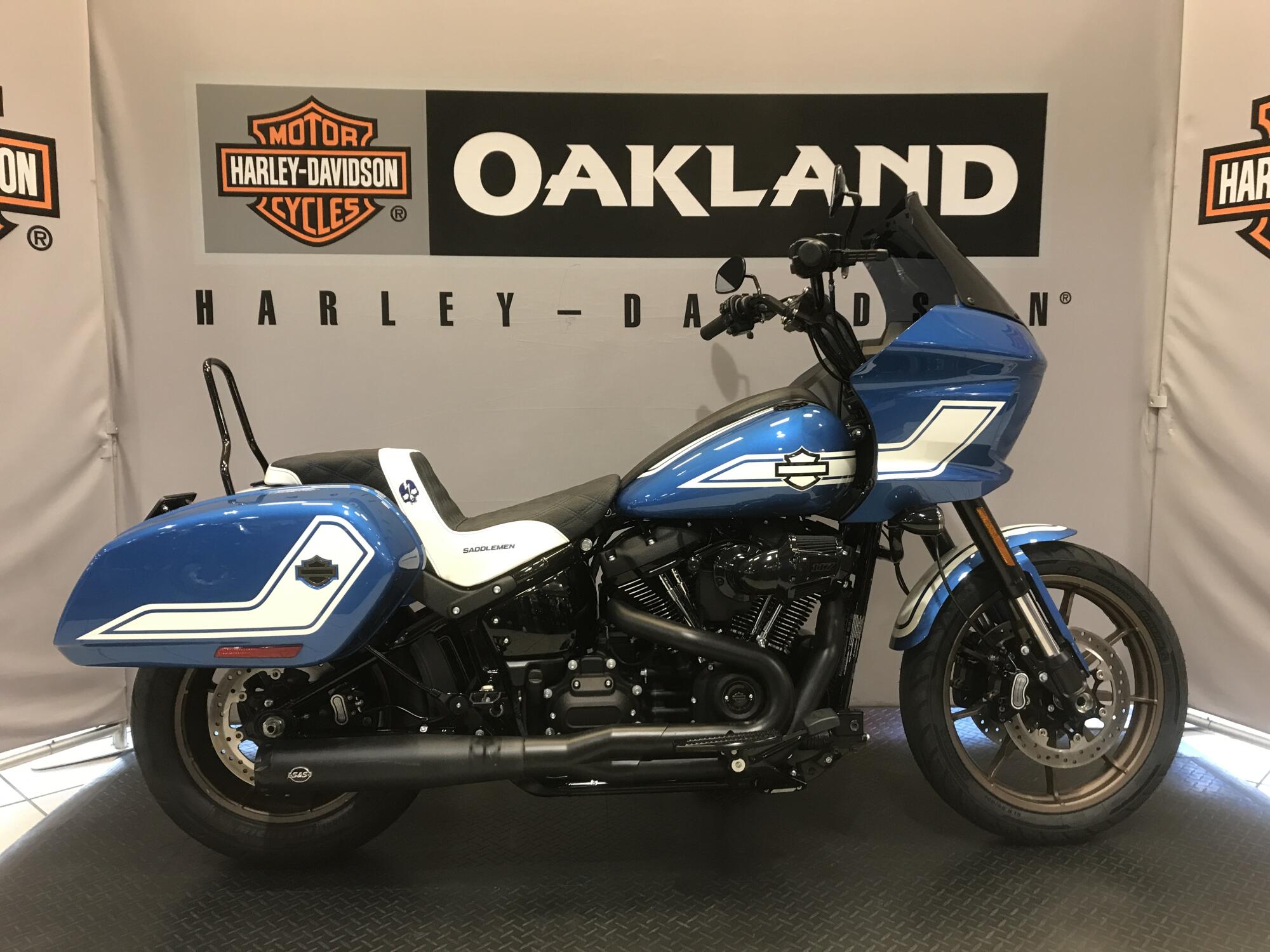

HDMC Certified Pre-Owned Low Rider ST in Fast Johnie Blue! This one is done up-Thrashin' risers and handlebars, Thrashin' footboards and rear pegs, custom Saddlemen seat, laydown license plate, detachable sissy bar, S and S exhaust and more! New front tire, almost new rear tire, brake fluid flush, service, and new spark plugs--this one is ready for cruisin' Cali in style! Eligible for Harley-Davidson Extended Service Protection Plan, Pre-Paid Maintenance, and H-D Tire and Wheel Coverage!

Specifications

Dimensions

add remove
- Length:

  93.1 in
- Seat height, unladen:

  28.3 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  694 lbs
- Weight, in running order:

  721 lb
- Luggage capacity – volume:

  1.9 cu ft (0.05 m³)
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  124.6 ft-lb
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
